Quadro Concealed Handrail Bracket

Quadro Concealed Fixing Handrail Bracket with M8 Lag Screw (Supplied)

50mm x 50mm base against the wall.

Suitable for internal & external applications.

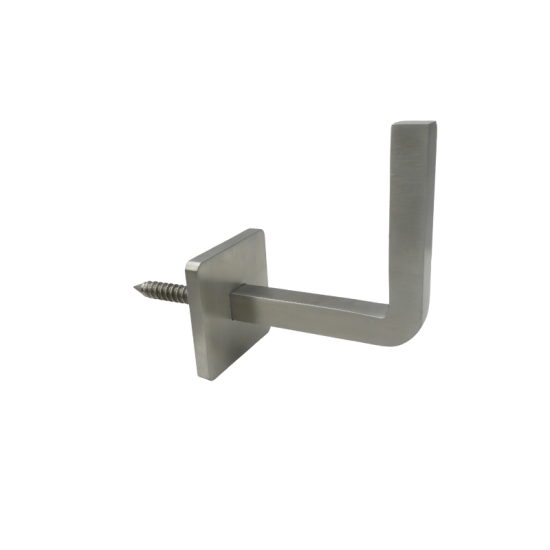

Weld on and saddle options available:

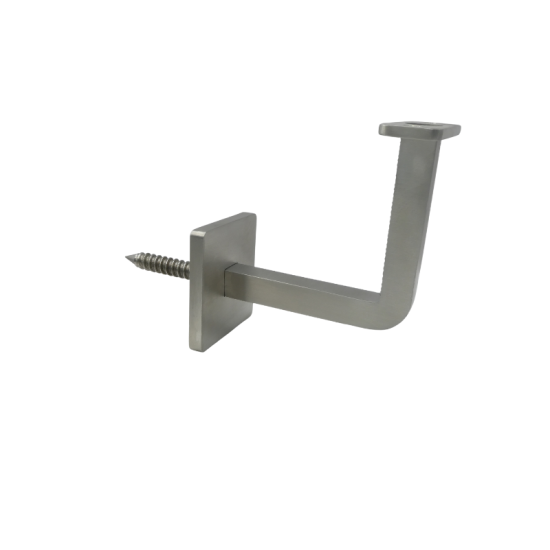

• Flat saddle to fit flat handrail profiles

Materials Available:

• AISI 316 Satin Finish



Recommended Spacings:

In normal traffic areas, recommended bracket spacings are 1000mm to 1200mm.  In heavy traffic areas, spacings of 600mm to 800mm are recommended.

This bracket complies with all relevant Building Codes

It is recommended to only use hand tools or the bracket itself to wind the lag screws into the fixing point. Power tools could damage the lag screws.
